PRODUCTION CAPACITIES

In engineering shop we offer machining by horizontal boring machines, horizontal and vertical lathes, milling machines, fixed-bed milling machines, tooth-cutting machines, NC drilling machines and grinding machines, manual and automated welding, burning-out of sheets and surface finishing.

We offer production of multidimensional products up to 125 tons and assembly of engineering units up to 800 tons.

In tool shop we offer machining by five-axis continually controlled CNC machinign centres Ferrari, HURCO and Reiden, horizontal and vertical lathes, jig boring machines, milling machines and plain, vertical and surface grinding machines.

Under the heat treatment we offer nitridation and tretment in electric furnaces.

MACHINING

Machining center FPPCT 400/10

Portálkové obráběcí centrum FPPCT 400/10

Diamater of rotary table‘s mounting plate: 3200mm, weight limit: 30 tons
Working surface: 6200 x 3750mm
Weight limit: 3000 kg/m2

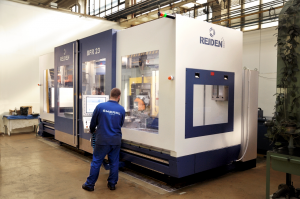

Five axis CNC machining center Reiden BFR23

Pětiosé souvisle řízené CNC obráběcí centrum Reiden BFR23

Starts: X = 3 000 mm, Y = 1 200 mm, Z = 1 500 mm
Table feed: X = 30 m/min , Y = 20 m/min , Z = 20 m/min
Spindle turns: 7 000 turns/min

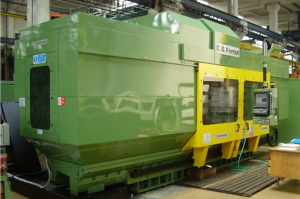

Five axis CNC machining center Ferrari S630

Pětiosé souvisle řízené CNC obráběcí centrum Ferrari S 630

Mounting plate‘s dimensions: 800x3000 mm
Rotary table’s diameter: 1300 mm

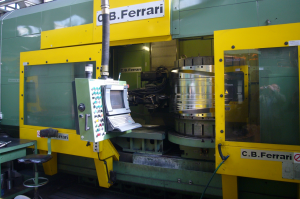

Five Axis CNC machining center Ferrari S620

Pětiosé souvisle řízené CNC obráběcí centrum Ferrari S 620

Mounting plate‘s dimensions: 800x2400mm
Rotary table’s diameter: 1250 mm

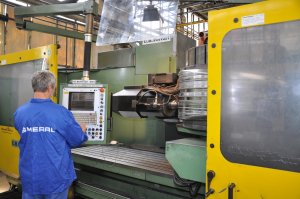

Five axis CNC machining center Ferrari S68 (6D)

Pětiosé souvisle řízené CNC obráběcí centrum Ferrari S68 (6 D)

Mounting plate‘s dimensions: 800x3000mm
Weight limit: 7 000 Kg

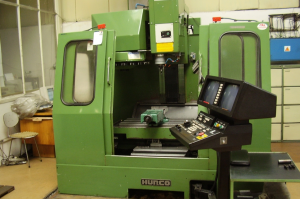

Vertical milling center HURCO BMC 25 (3D)

Vertikální frézovací centrum HURCO BMC 25 (3D)

Starts: X = 610 mm, Y = 410 mm, Z = 560 mm
Table feed: X = 10 m/min , Y = 10 m/min , Z = 10 m/min
Mounting plate: 500x800 mm

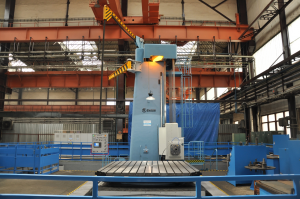

Horizontal milling center W 200 HC 4000 6000

Vodorovná vyvrtávačka (horizontka) W 200 HC 4000 6000

Working table‘s dimensions: 3 500 x 4 000 mm,
Machining range: X = 6 000mm, Y = 4 100 mm, Z = 1 600 mm
Max. weight limit: 35 000 Kg

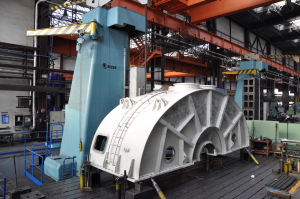

Horizontal milling center W 250 HC 4000 8000

Vodorovná vyvrtávačka (horizontka) W 250 HC 4000 8000

Working table‘s dimensions: 4 000 x 8 000mm.
Working height: 4000mm.
Max. weight limit: 125 000 Kg.

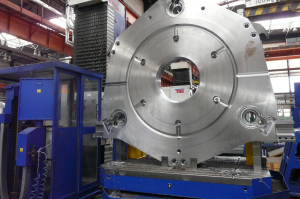

Horizontal milling center WHN 13 CNC

Vodorovná vyvrtávačka (horizontka) WHN 13 CNC

Working table‘s dimensions: 2200 x 1800 mm
Machining range: X = 3500 mm, Y = 2000 mm, Z = 1250 mm, W = 800 mm
Max. weight limit: 20 000 kg
Max. spindle turns: 2000 turns / min

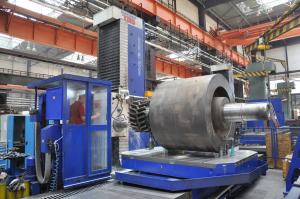

Horizontal milling center WHQ 13.8 CNC

Vodorovná vyvrtávačka (horizontka) WHQ 13.8 CNC

Working table’s dimensions: 1 800 x 2 200
Machining range: X = 3 500 mm, Y = 2 500 mm, Z = 1 250 mm, W = 800 mm
Max. weight limit: 12 000 kg
Max. spindle turns: 1.800 turns/min

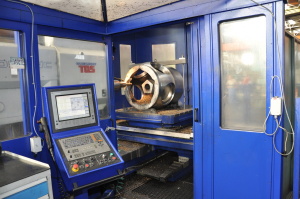

Horizontsl milling center WH 105 CNC

Vodorovná vyvrtávačka (horizontka) WH 105 CNC

Working table’s dimensions: 1 400 x 1 400 mm,
Machining range: X = 1 800 mm, Y = 1 600 mm, Z = 1 250 mm, W=630 mm
Max. weight limit: 5 000 kg

Horizontal milling center WRD 150 Q

Vodorovná vyvrtávačka (horizontka) WRD 150 Q

Working table’s dimensions: 3 500 x 3 000 mm
Machining range: X = 12 000 mm, Y = 4 000 mm, Z = 1 800 mm
Max. weight limit: 40 000 kg

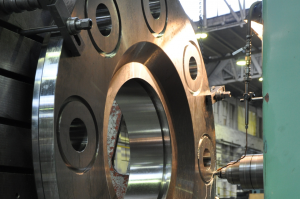

Horizontal milling center WHN 13 B

Vodorovná vyvrtávačka (horizontka) WHN 13 B

Working table’s dimensions: 1 800 x 1 600 mm
Machining range: X = 3 500 mm, Y = 2 000 mm, Z = 1 250 mm, W= 800 mm
Max. weight limit: 40 000 kg
Maximální spindle turns: 800 turns/min

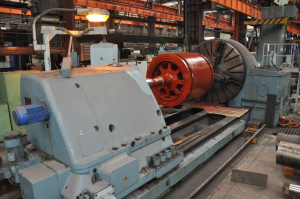

CNC turning centre lathe SIU 250 TNR 6250

Height of points over the base : 1 250 mm
Max. turning diameter over the base: 2 100 mm
Max. turning diameter over the support: 1 700 mm
Distance between points: 6 000 mm

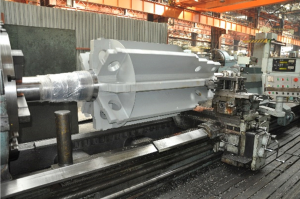

Turning centre lathe SUA 125

Max. turning diameter over the support: 1 000 mm
Max. turning diameter over the base: 1 250 mm
Distance between points: 5 000 mm

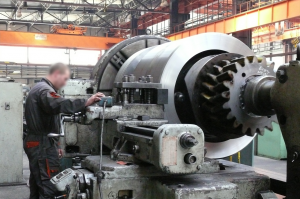

Turning centre lathe SUA 125 PA 8000

Max. turning diameter over the support: 1 000 mm
Max. turning diameter over the base: 1 250 mm
Distance between points: 8 000 mm

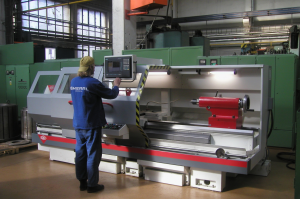

CCNC turning centre lathe MASTURN 70 CNC

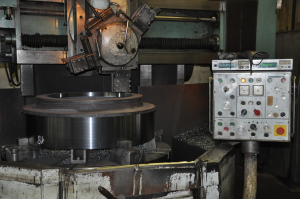

Vertical mill SKJ 12 A

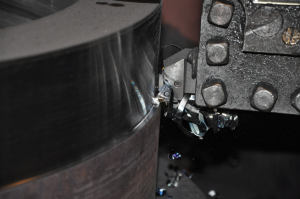

Vertical mill SKQ 20 NC

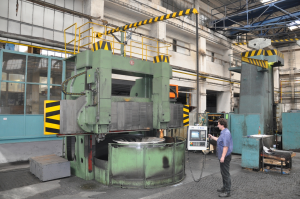

Vertical mill SK25BCNC

Working table’s diameter: 2 400 mm
Limiting working diameter.: 2 600 mm
Max. working height.: 1 600 mm
Max. quill’s operatinal height: 1 000 mm
Working table’s diameter: 2 000 mm
Max. weight limit: 10 t

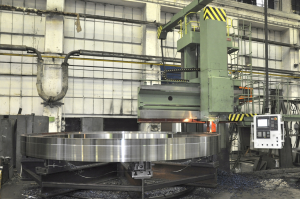

Vertical mill SKJ 32 CNC

Max. turning diameter.: 6 300 mm
Max. height limit: 2 500 mm
Working table’s diameter: 4 000 mm

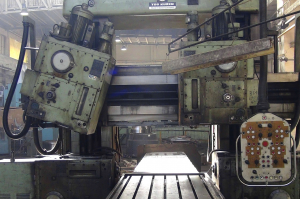

Gantry-type milling center FREP 12

Working table’s dimensions: 1200 x 4000 mm
Max. height limit: 1200 mm

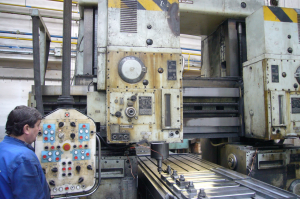

Gantry-type milling center FREP 20x80

HEAT TREATMENT

Heat treatment:

Gas nitriding – diameter of the oven 1200 - 2000mm
Electric oven – dimensions 1000 x 600 x 2000mm ( width x height x depth) – hardening (oil or water based treating), normalizing
Electric oven – dimensions 3800 x 2400 x 3800mm – normalizing

ERECTION AND ASSEMBLY

Erection and assembly:

Assembly of engineering complexes up to weight 800 tons.
Manipulation by cranes with lifting capacity 125 tons.

BURNINGOUT OF SHEETS

Welding

Manual welding – gas welding, arc welding by the “E” method, shielded welding by CO2, respective tests of welders.
Machine welding – welding robot MOTOMAN, positioner 3 tons, rotary table 10 tons, max. diameters of welding 5900 mm.
